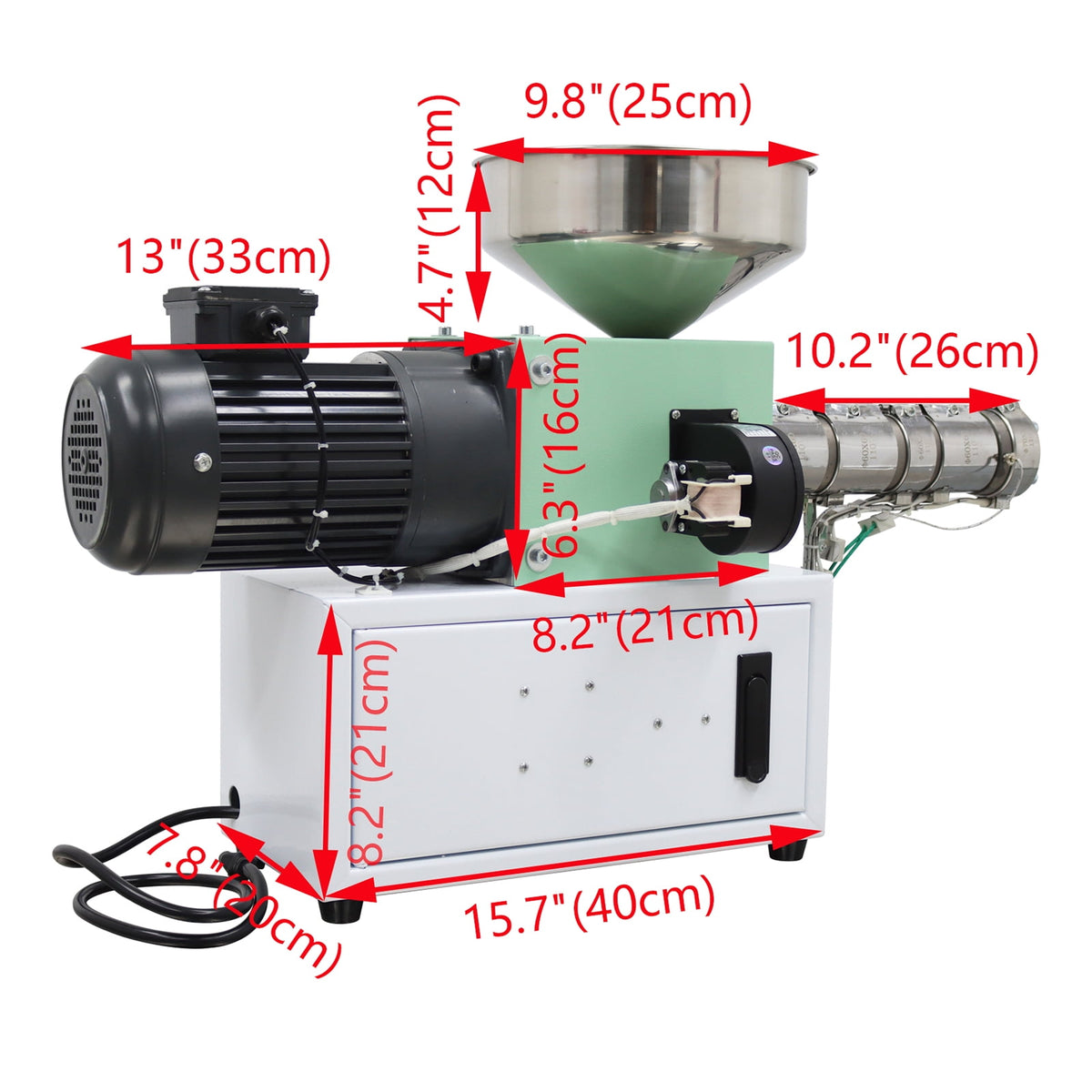

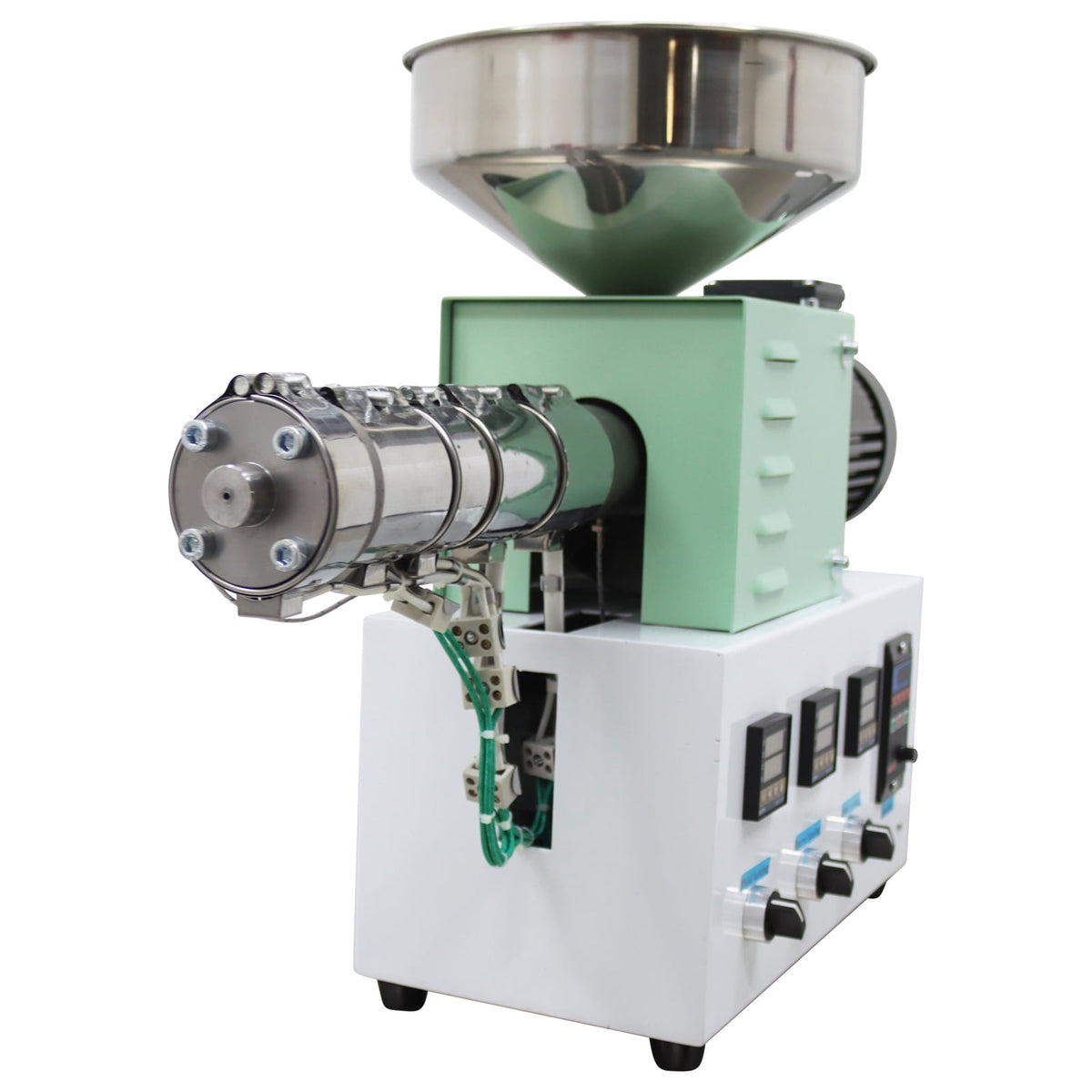

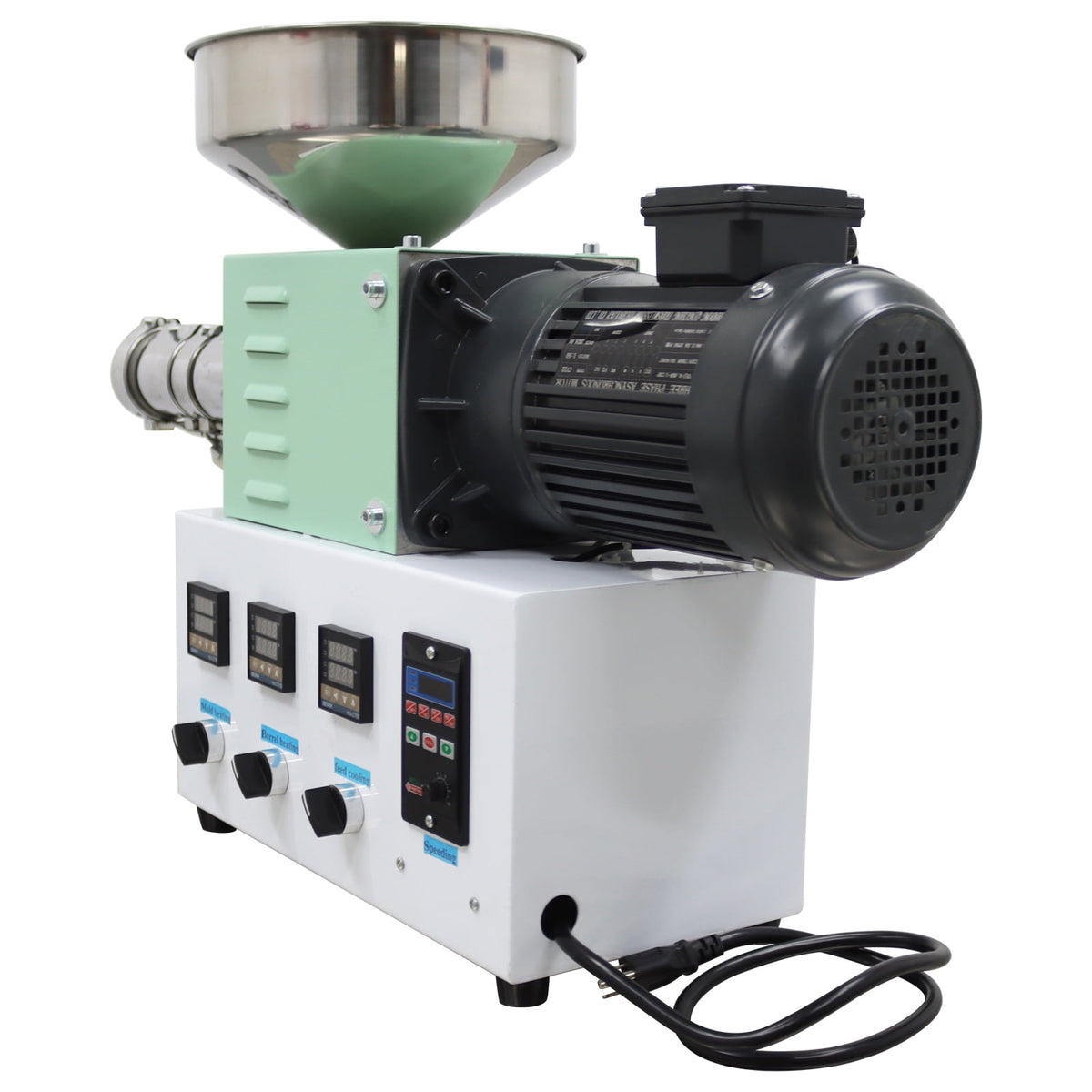

3D Printing Filament Extruder Single Screw Extruder Adjustable Temperature & Speed 110V

Description:
This machine is the mother-machine-tool for plastic extrusion processing. It needs other auxiliary equipment, such as moulds, cooling,hauling machine. winding or cutting machine to finish the plastic products processing.
It can realize the functions of heating and extruding out of plastic raw-materials.
Suitable for extrusion production of PEEK, PCL, ABS, PLA, PETG, TPU,TPE and other common 3D printing consumables.

Product Parameters：
Screw diameter:1.37inch（35mm）
LD :13:1
Work center level: 11.8inch（300mm）
Speed: 0-25 r/min

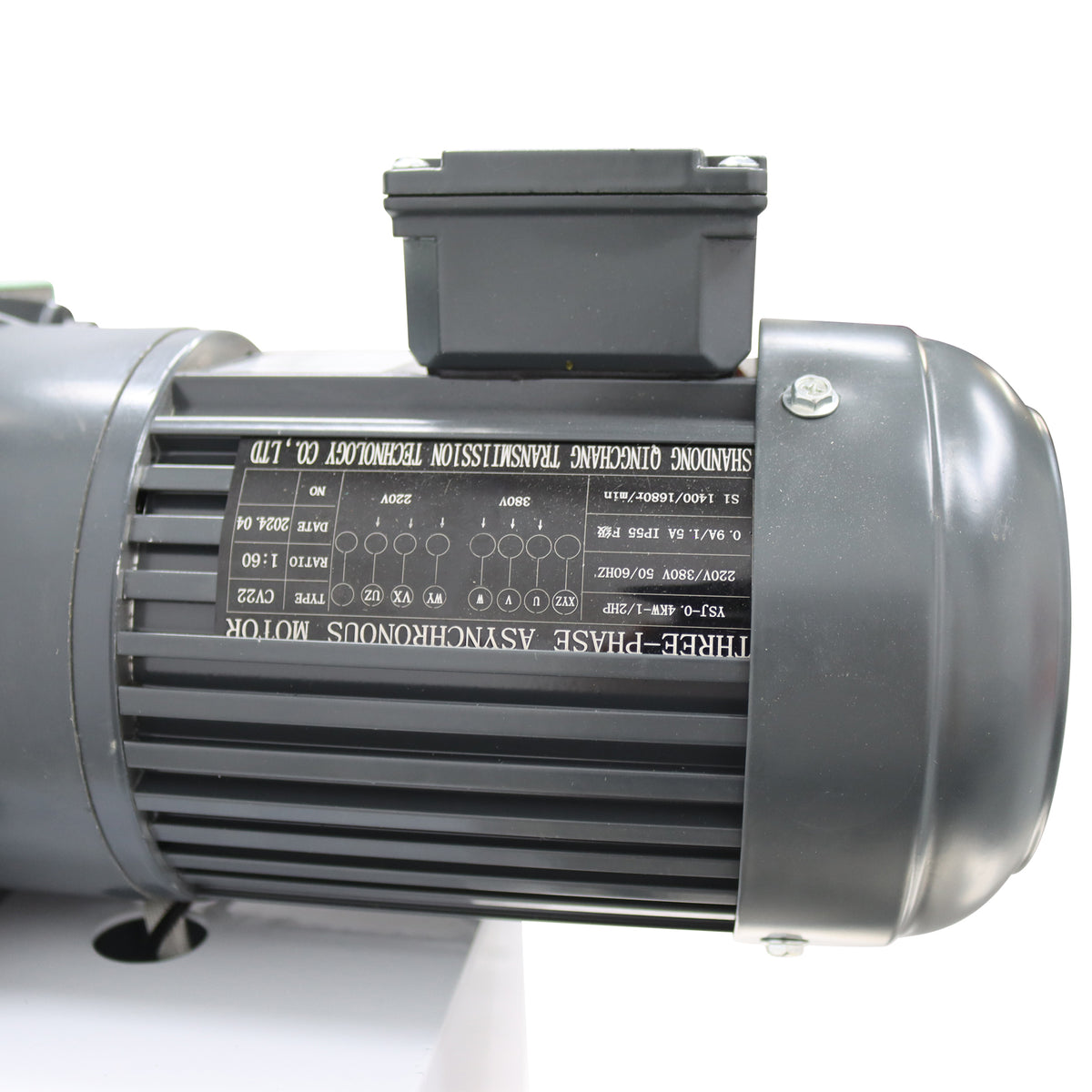

Motor Power: 400W
heating power: 800W
Voltage: 110V
Single-screw machine.
Maximum output capacity: 0.1-5kg/h.
Mold hole diameter: 2.8mm (Customized molds of different sizes can also be provided according to customer requirements)
Maximum temperature: 300℃

NOTE:
It is forbidden to touch the heating area and screw cylinder with hands during the use of this equipment. For maintenance, it is required to cut-off the power and pay attention to safety.

Features:

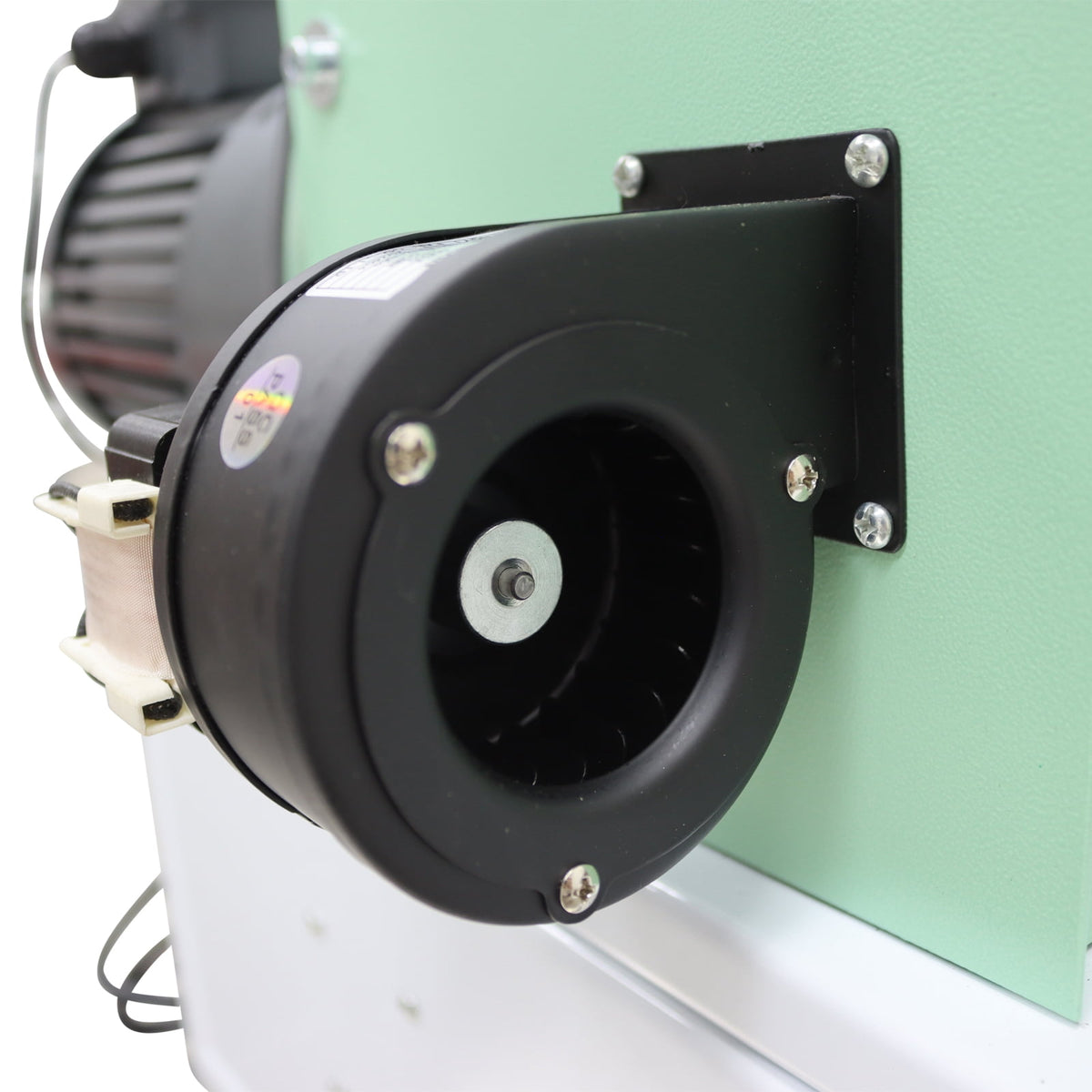

1. Temperature of barrel heating and temperature of feed cooling are adjustable.
2. The speed can be adjusted.

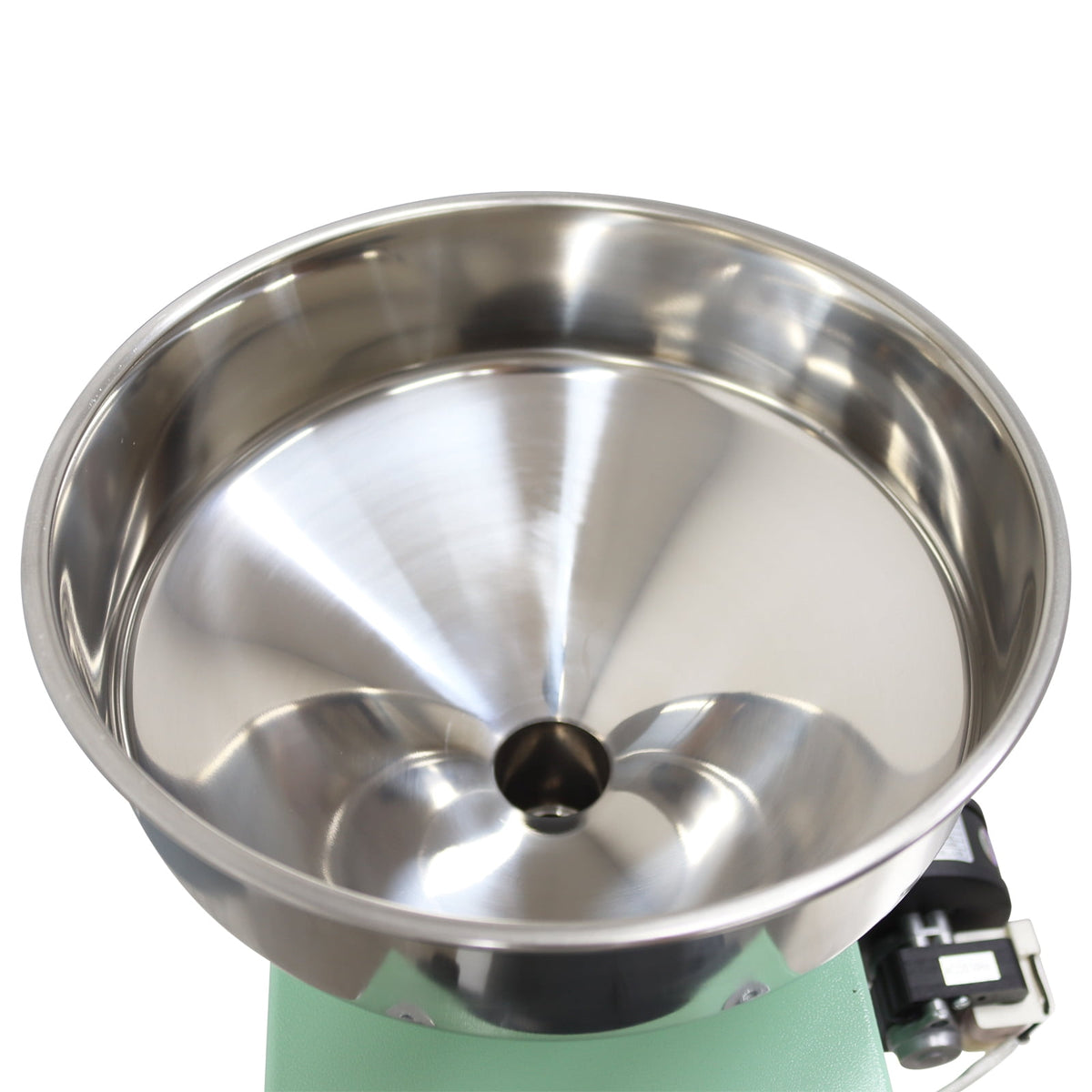

3. Stainless steel funnel.

Item Included(239941):
1* Single Screw Extruder 110V

• Compatible with 110V voltage, motor power 400W, heating power 800W, screw diameter 35mm, speed range 0–25r/min.

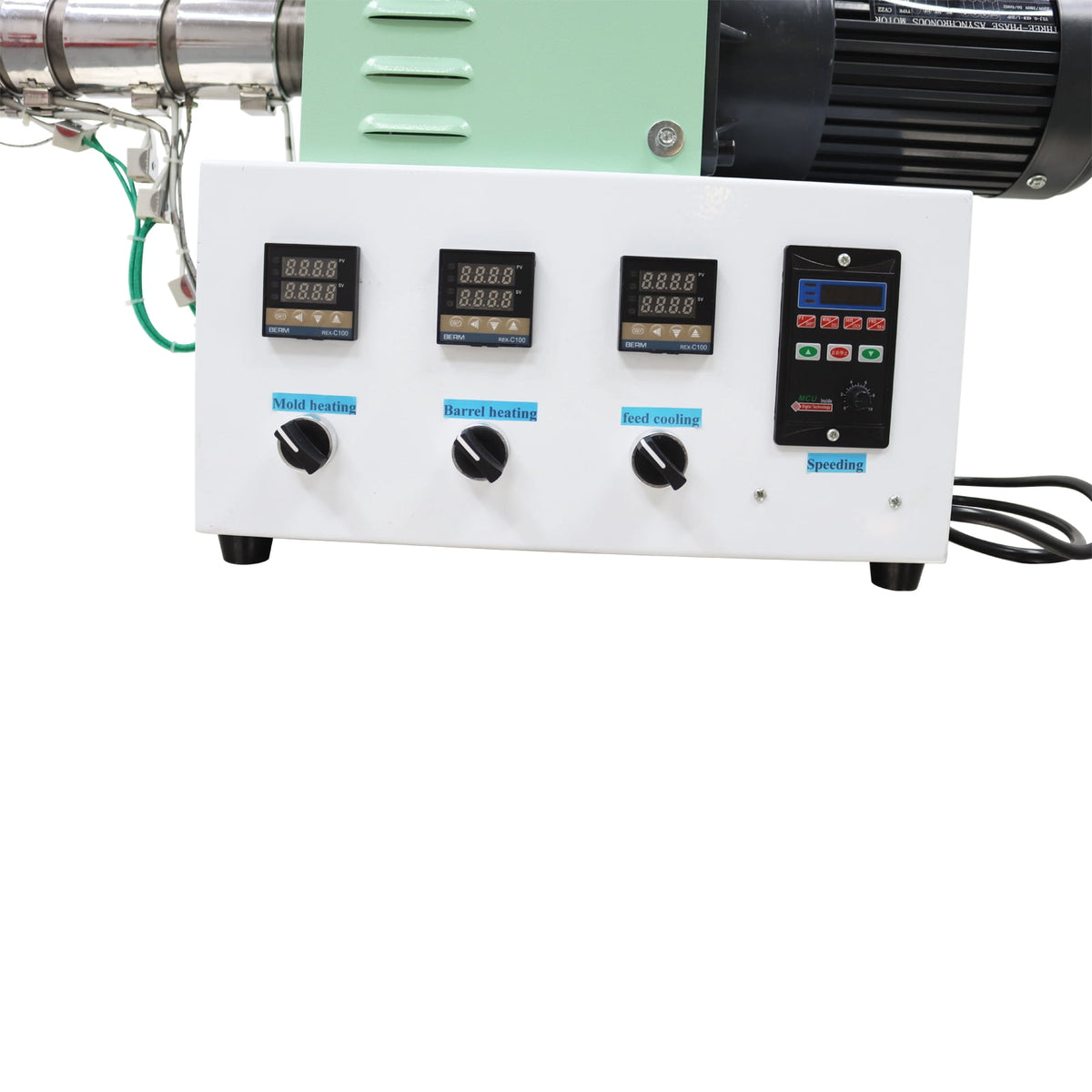

• Equipped with three independent temperature control panels to control the temperature of the nozzle, barrel heating and feeding cooling separately.
• The top is equipped with a stainless steel hopper. The maximum output of the entire machine is 0.1–5kg/h, with a length-to-diameter ratio of 13:1.
• It is equipped with a speed control panel, allowing for independent adjustment of the screw rotation speed. The body has independent temperature control knobs.
• Compatible with PLA, ABS, TPU, PEEK and other materials. Requires a mold, traction and winding auxiliary machine to complete the processing of the finished product.
